VP19

The VP19 Photoelectric Smoke Alarm is a kind of high sensitivity smoke alarm. It has a set of (COM NC) relay dry contact output and can be reseted at long distance. It has certain anti-false alarm ability for water vapor and dust.
Availability:
Summary


The VP19 Photoelectric Smoke Alarm is a kind of high sensitivity smoke alarm. It has a set of (COM NC) relay dry contact output and can be reseted at long distance. It has certain anti-false alarm ability for water vapor and dust.


Specification


Operating Voltage

DC17V-30V

Quiescent current

<10mA

Alarm current

<100mA

Sensitivity

0.6-1.65%FT (9.2MV~9.7MV)

Reset terminal Voltage

DC17V-30V


Functions


A. Normal working status: Red led flashes once every 3 seconds.

B. Alarm status: Red led is always on, NC-COM dry contact is open.

C. Remote reset: Add 17-30V voltage on the reset terminal, the alarm will be reseted.

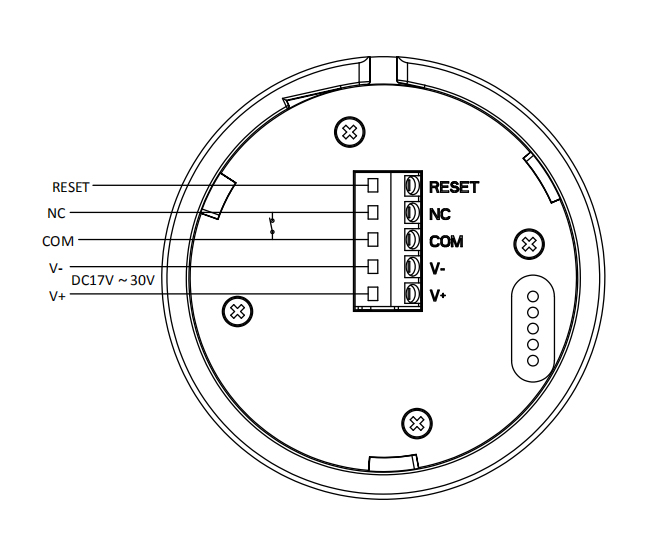

Wiring diagram


Wiring diagram

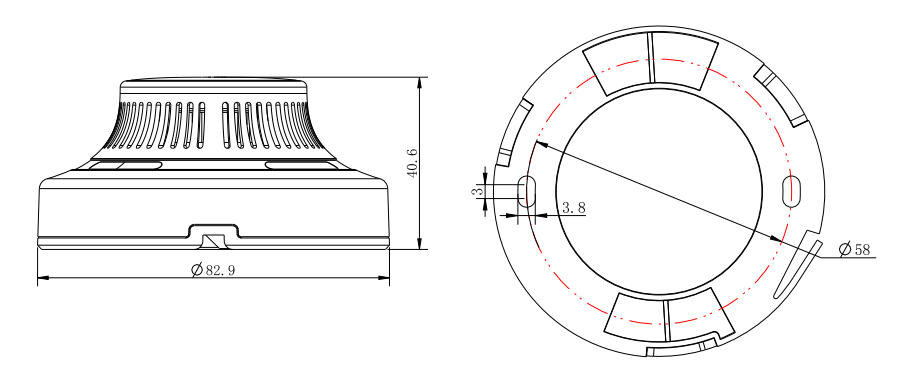

Dimension and installation

Dimension and installation

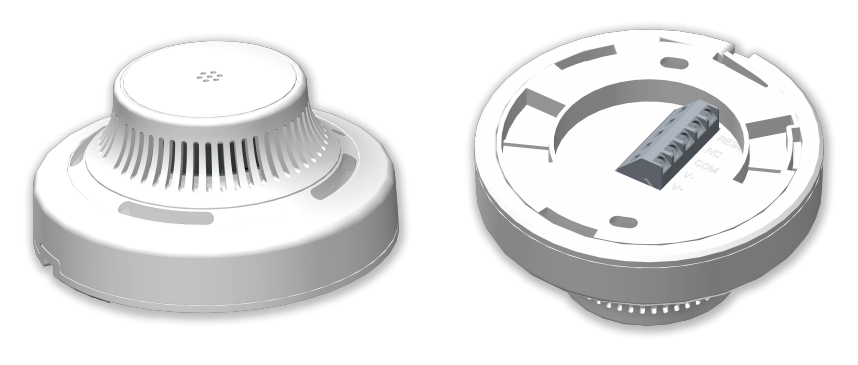

Appearances


Appearances


Certificate


证书
