Stand-alone Detectors

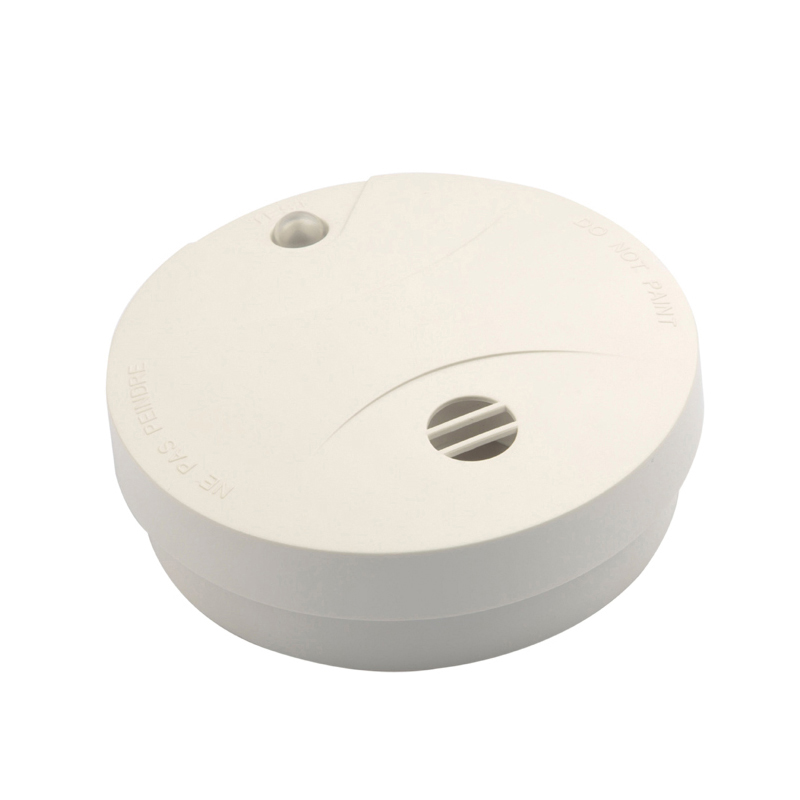

SD218 series photoelectric smoke detectors are designed in accordance with
EN14604:2005 and manufactured under the best quality control. The SD218 series alarm
are adopted the reliability UL-certificated infrared components. The SD218 series alarm
also act as a smoke sensor and/or a 135 o F heat detector at the same location.
• Photoelectric sensing technology

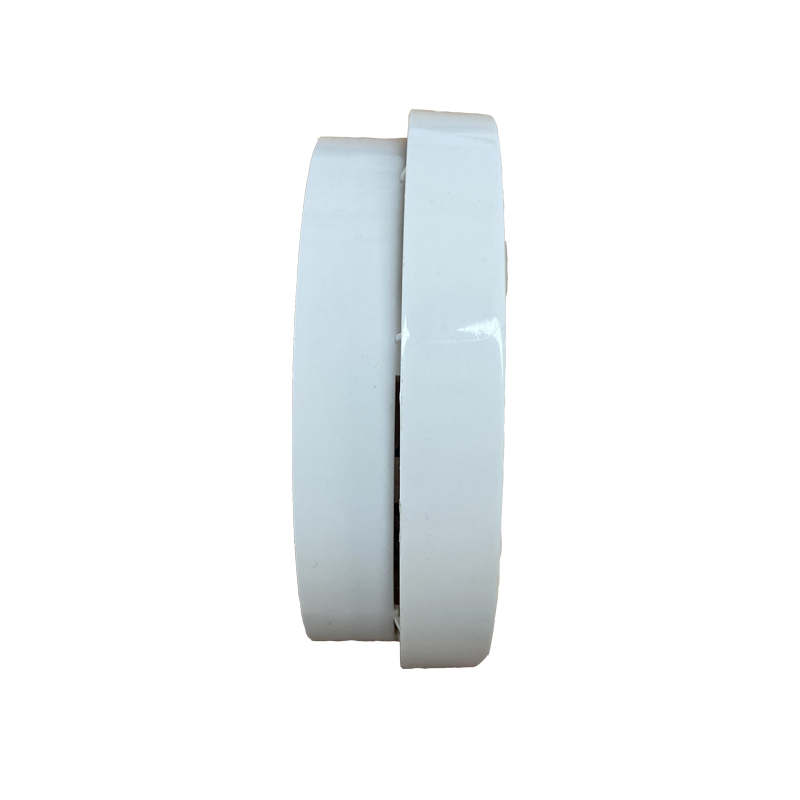

• Sleek low-profile housing design
• Low-sensitivity warning
• Low-battery warning

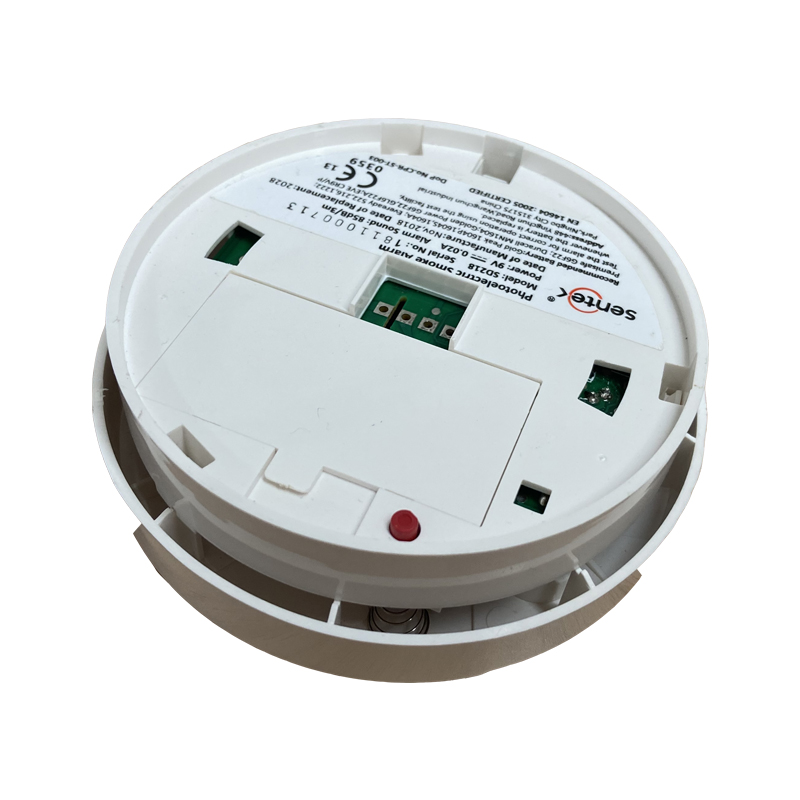

• Battery case at the back of a detector for easy removal of a battery
• SMD circuit board design-satisfactory quality and reliability guaranteed
• Test button verifies battery and alarm operation
• Sounding a loud alarm signal of exceeding 85db in alarm mode
• Easy installation and maintenance
• Five-year limited warranty
Part No . | Power Type | Description |
| SD218 | 9V Battery | Photoelectric smoke detector |
| SD218-l | 9V Battery | Smoke detector, Inter-connectable (up to 38 units ) |
| SD218-A-l | AC 220V/230V | AC powered photoelectric smoke detector, Inter-connectable (up to 38 units) |
| SD218-A-B-l | AC 110V/220V/230Vwith 9V Battery backup | AC powered photoelectric smoke detector, Inter-connectable (up to 38 units)with battery backup |
| SD218H | 9V Battery | Smoke cum Heat combined detector |
| SD218H-l | 9V Battery | Smoke cum heat combined detector, Inter-connectable (up to 38 units) |
| SD218H-A-l | AC 110V/220V/230V | AC powered photoelectric smoke cum heat combined detector, ，Inter-connectable (up to 38 units) |
| SD218H-A-B-l | AC 110V/220V/230Vwith 9V Battery backup | AC powered photoelectric smoke cum heat combined detector, Inter-connectable (up to 38 units), with battery backup |
Smoke Sensitivity | 2.26+/-1.21%/FT Obscuration (UL standard)，0.08~0.15dB/m (EN standard) |
Heat Threshold | 135F ( 57°C) (for detector with heat sensor only) |
Battery Availability | 15months ( carbon-zinc ); 3 years (Alkaline); 10 years (Lithium) |
Standby Current | 8μA |
Alarm Current | 15μA |
Temperature Range | 0°C to 50°C . |
Humidity | 0 to 95% RH, no condensation or icing |
Alarm Sound L evel | 85 db/3m |
